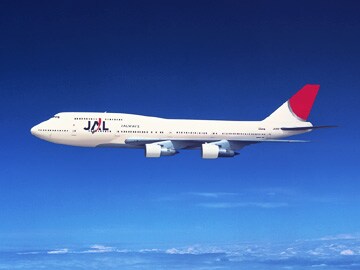

JAL Aircraft collection Boeing747-300

WALLPAPER DOWNLOAD

The 300-Series of 747 is the last version of the "Classic" Jumbo Jet and features a three-man cockpit. Main feature is the stretched upper deck.

Length 70.7m
Wingspan 59.6m
Height 19.3m
Engine thrust 24,330kgx4
Standard seating capacity 350-483
Cruising speed 916km/h
Maximum take-off weight 371.9t
Range 10,800km

Seats

Business Class JAL SHELL FLAT NEO
JAL SHELL FLAT SEAT
JAL SKYLUXE SEAT
Economy Class Economy Class

International Flights

  • *The aircraft currently used by the international flight.
  • *Operating aircraft and seating configurations are subject to change without prior notice.

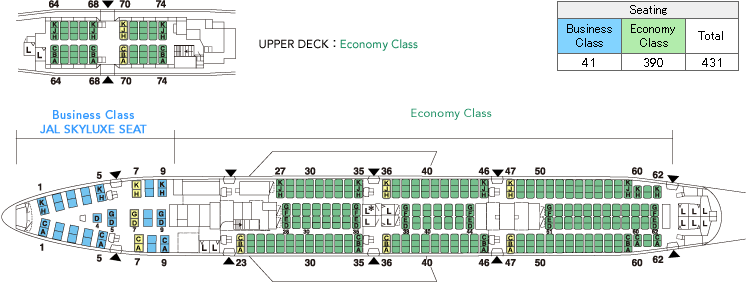

S05
Business Class JAL SKYLUXE SEAT Economy Class Total
Row 1-9Row 23-62Row
64-74Row(UPPER DECK)

Seat 41 390 431

Emergency Exit 5Row Rear
23Row Front
35Row Rear
46Row Rear
62Row Rear
68Row Rear(UPPER DECK)
L:Lavatory(*:Lavatory for wheelchair passengers +:Lavatory with Diaper Shelf) 23Row Front
35Row Rear
35Row Rear(L*)
62Row Rear
64Row Front(UPPER DECK)
Emergency Exit row seat 7ACDGHK
23ABC
36ABCHJK
47ABCHJK
70ABCHJK(UPPER DECK)
No Reclining
No Window Baby Bassinet

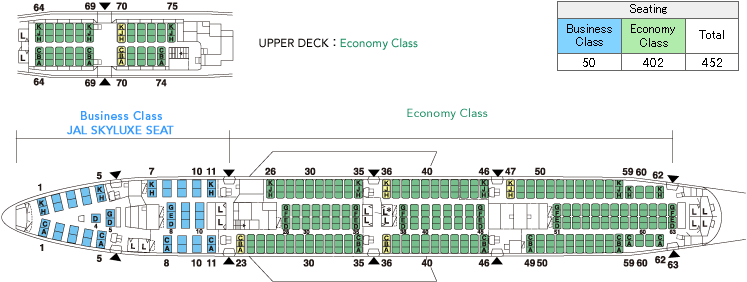

S23
Business Class JAL SKYLUXE SEAT Economy Class Total
Row 1-11Row 23-63Row
64-75Row(UPPER DECK)

Seat 50 402 452

Emergency Exit 5Row Rear
11Row Rear
35Row Rear
46Row Rear
62Row Rear
69Row Rear(UPPER DECK)
L:Lavatory(*:Lavatory for wheelchair passengers +:Lavatory with Diaper Shelf) 7Row Front
35Row Rear
35Row Rear(L*)
63Row Rear
64Row Front(UPPER DECK)
Emergency Exit row seat 23ABC
36ABCHJK
47HJK
70ABCHJK(UPPER DECK)
No Reclining
No Window Baby Bassinet

opens in new windowInformation for Passenger requesting Emergency Exit row seat
