Transport Solutions for Vehicles
J SOLUTIONS WHEEL

Our specialized car platform - designed to fit passenger
aicraft belly hold - can offer safe and high quality
transport solutions, depending on your vehicle type.

More destinations are available with JAL passenger flights
- even for Japan domestic airports!

Custom-made solutions

Custom-made solutions

Depending on your vehicle type (such as dimensions, tie-down options), we will offer safe and high quality transport solutions.
As the service is designed for passenger aircraft, more destinations are available where cargo freighters don't fly - even for Japan domestic airports!

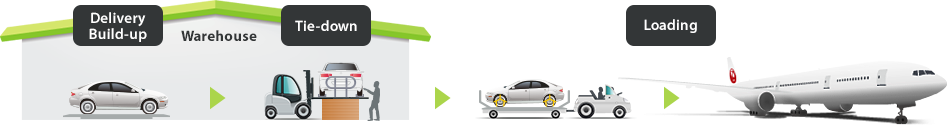

Flow of carriage

Flow of carriage

Before Shipping

  • Shipping Consultation
    With JALCARGO's experience and expertise, we can advise shipping availability on our aircraft, tie-down solutions etc., based on vehicle information provided.

Transport Flow

  • Build-up
    Build-up
    Vehicle will be safely built on specialized car transport platform in the warehouse first - not directly loaded into the aircraft.
  • Tie-down
    Tie-down
    To secure vehicle with the platform, tire straps will be used.
    We take utmost care to avoid the strap from damaging the wheel cap or the body.
    Tie-down
  • Loading
    Loading
    JALCARGO's specialized platform is designed to load vehicle in traveling direction of the aircraft.
    Loading agents use the handles equipped to the platform, without touching the vehicle directly.

Technical Information

Aircraft Compatibility B777,B787
Vehicle Compatibility
with the Platform
Front viewFront view (1)Max. vehicle weight 1,953kg
(2)Max. vehicle overall width 1,780mm / 1,880mm
(3)Max. vehicle inside width 1,223mm

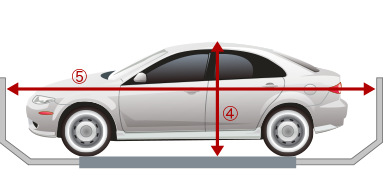

Side viewSide view (1)Max. vehicle height 1,490mm
(2)Max. vehicle length 5,140mm
(3)Min. ground clearance 100mm

Freight Charge

Freight Charge JAL published rates (or IATA rates)

Service available airports

JAPAN Region Tokyo(Narita,Haneda), Osaka(Kansai), Nagoya(Chubu), Fukuoka, Sapporo
AMERICA New York, Chicago, Los Angeles
EUROPE London, Paris, Frankfurt
SOUTH EAST ASIA / INDIA Kuala Lumpur, Bangkok, Jakarta, Delhi
GUAM / OCEANIA Sydney

Flow of Transportation

Reservation

Please provide origin, destination, dimension and planned flight to our local sales office.

Sales and Airport Offices

*Please use 131 AWB.
Please print "J SOLUTIONS WHEEL" in the handling information column.

Acceptance

Please make sure fuel tank is almost empty upon the acceptance at origin airport.

Delivery

Exterior damage(s) will be verified/noted at destination airport before the delivery.

  • *The cargo delivery time may differ at some airports depending on business hours of Customs Offices.
  • *The cut-off time for the cargo acceptance and the delivery time may depend each airport's service standard.

JALCARGO Tracing Mail Service (JTMS)

Request JTMS

FAQ

What would be the temperature, humidity conditions during flight?
Generally, temperatures vary depending on the types of aircraft or the loading position, but it is possible to maintain the temperature around 20℃ (or 68F) with conditioned air.
Humidity can not be controlled during flight.
Air pressure will be decreased to around 0.8 atm during flight.
What are the applicable routes and schedule?
You can check at the page of "Flight Timetable".

Flight Timetable

Whom should I contact?

You can check at the page of Sales and Airport Offices.

Sales and Airport Offices
