J SOLUTIONS PHARMA Transportation service for pharmaceuticals

Expertly trained professionals with know-how in the transport of pharmaceuticals will safely, speedily, and reliably transport your shipment of pharmaceuticals, such as reagents, investigational new drug, drug substances, formulations of pharmaceuticals, vaccines, under rigid temperature control.

Features

Features

Transport at constant temperatures using special containers/equipment to meet a wide range of shipping needs

In addition to transporting shipments requiring strict temperature control, such as bio-pharmaceuticals investigational new drug and reagents, we transport shipments in various temperature ranges using special equipment. Especially, JAL's innovative equipments are reliable, as we have a database on temperature logged data in various situations, and have verified our quality of transportation.

Expertly trained staff with know-how in the transport of pharmaceuticals provide solutions and high quality handling

Expertly trained staff with know-how in the transport of pharmaceuticals will listen to your requests, and draw up a suitable forwarding plan including choice of the most appropriate container/equipment. Handling will comply with international transport guidelines (IATA TCR, etc.), and requests from pharmaceutical companies.

We offer custom-made solutions to suit your shipping needs

We offer order-made solutions to suit your shipping needs

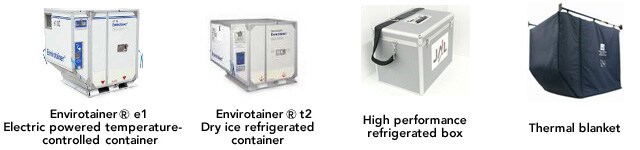

Example of Equipment proposal

Pharmaceuticals requiring economical transport at room temperature/ Temperature range: +15°C to +25°C

Passive container(CC20)

Provides effective temperature control without effects of outside temperatures, through the use of VIP and coolant cassettes with high capacity to maintain temperatures.

Leasing equipmentJAL equipment

Temperature range
:15-25°C
Loading space
:1200×1000×1000mm
Hours of constant temperatures
:100hour(depends on ambient temperature)
Temperature Tolerance
:20°Cą5°C
Exterior
:1,000KG

Passive container

VIP(vacuum insulated panel) is used.

A box using VIP is placed inside the container.
VIP is arranged on all 6 sides to achieve high performance temperature control.

Special coolant cassettes are used.

Compared to regular coolants, we have chosen a special coolant that stays cool for many hours.
By setting the appropriate temperature to suit the shipment, cooling and heating effects are exhibited when sensing differences in temperature.
Temperatures inside the box are maintained during transport. This special coolant cassette is installed on all sides of the box inside the container.

Special coolant cassette

Application of intensive know-how

We have taken various measures to realize maximum performance of CC20 specs using our know-how on HRB transport service, such as establishing detailed procedures, checking optimal conditions of the coolant cassettes, and implementing preventive measures against temperature excursion during delivery on the tarmac.

Temperature recording

CC20 is designed to indicate upper, middle and low temperatures in order to strictly monitor temperatures.
In addition, a temperature logger with GPS is loaded to immediately obtain information about conditions inside the container.

Temperature monitor screen

Detailed procedures

To realize maximum performance of CC20 specs, we will establish detailed procedures and provide reproducible high quality service.

Passive container(CC20)
Provides high quality transportation at constant temperatures
  • As VIP, which can maintain temperatures more stably than polyurethane foam, is inserted on all 6 sides of the container, effects on temperatures from all directions are minimized.
  • CC20 can be delivered outside the airport (excluding certain airports)
  • Various measures are taken to realize maximum performance of CC20 specs using our know-how on HRB transport service.
Reduces the customers' logistic costs
  • We will manage the coolant cassettes, special box and container, which means you no longer have to worry about management costs.
  • By simply placing shipments in the container and tying it down, it will save you the trouble of packaging.
  • We will bear the costs for returning the container to Japan or sending it overseas, reducing your costs for customs clearance or air freight, etc.
  • You can use it less expensively than mechanical containers by reducing development costs.
Environmentally-friendly transportation
  • The special coolant cassettes and special box are reused, reducing the amount of environmental waste by disposing packaging materials.
  • No need to use dry ice or a cool truck. CO2 emissions can be reduced.

Test Data  Passive container/ 8th Octorber~13th October NRT

Transport environment data tracking system

In addition to conventional transport status information, CC20 provides transport environment data (temperature, shock, GPS, etc.) during flight in real time (except during flight and certain transport sectors).
Please contact our sales staff for further information.

We will inform you about the tracing results below.

Search

Transport progress chart

GPS data is indicated on the map, except during flight. By aligning the cursor, temperature and shock data are indicated in real time in a pop up window.

Map

Temperature logger (extra fee required)

We can install a globally reliable temperature logger on our equipment according to the customer's needs to provide data during transportation.
We have added a logger conforming to FDA(Food and Drug Administration) 21CFR Part11(tampering prevention of data) to our line up.

Pharmaceuticals, investigational new drug, etc., requiring rigid temperature control / Temperature range; refrigerated (2°C to 8°C), room temperature (+15°C to +25°C)

Rechargeable container (CSafeRKN/RKNe1/RAPe2)

Heat & Cold type ar freight container Provides rigid temperature control unaffected by ambient temperatures Can be set at aplus temperature range
* As containers are leased from Environtainer or CSafe, charges are separate.
* Each Technical specification are provided from supplier.

*Almost the same volume can be loaded in an RKNe1 and CSafeRKN container.

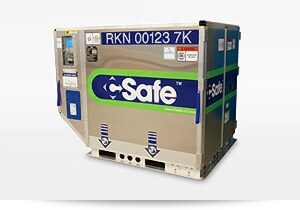

Rechargeable container CSafeRKN

Rechargeable container CSafeRKN

Leasing equipmentJAL equipment

Temperature range
: 4°C to +25°C
Loading space
: 1219 × 1273 × 1278mm
Temperature Tolerance
: ±2°C

Rechargeable container RKNe1

Rechargeable container RKNe1

Leasing equipmentJAL equipment

Temperature range
: 0°C to +20°C
Loading space
: 1340 × 1319 × 1315mm
Temperature Tolerance
Set temp (0°C to +10°C), Temp tolerance ±3°C
Set temp (+10°C to +20°C), Temp tolerance ±5°C

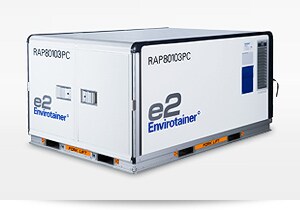

Rechargeable container RAPe2

Rechargeable container RAPe2

Leasing equipmentJAL equipment

Temperature range
: 0°C to +25°C
Loading space
: 2465 × 2055 × 1260mm
Temperature Tolerance
Set temp (0°C to +10°C), Temp tolerance ±3°C
Set temp (+10°C to +25°C), Temp tolerance ±5°C

Pharmaceuticals requiring transportation at freezing temperature / Temperature range; freezing (-20°C to -10°C), refrigerated (2°C to 8°C)

Cool container (RKNt2/RAPt2)

Air freight container using dry ice as a refrigerant. Can be set at the temperature (2°C to 8°C) for refrigerated product.
It is important to grasp and arrange the ambient temperature in advance to set interal temperature.
And will offer optimal proposal based on our know how.
Please contact to our sales office for more details.
* There is a separate charge for leasing an Environtainer container.
* Each Technical specification are provided from supplier.

Volume

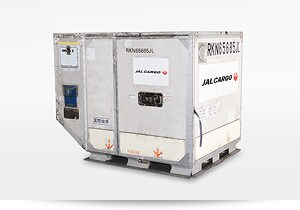

Cool container RKNt2

Cool container RKNt2

Leasing equipmentJAL equipment

Temperature range
: -20°C to +20°C
Loading space
: 1415 × 1355 × 1360mm
Temperature Tolerance
Set temp (+5°C), Temp tolerance ±3°C
Set temp (+15°C), Temp tolerance ±5°C
* Provide that the ambient temp is between +5°C to +25°C higher than the set temp.

Cool container RAPt2

Cool container RAPt2

Leasing equipmentJAL equipment

Temperature range
: -20°C to +20°C
Loading space
: 2535 × 2065 × 1420mm
Temperature Tolerance
Set temp (+5°C), Temp tolerance ±3°C
Set temp (+15°C), Temp tolerance ±5°C
* Provide that the ambient temp is between +5°C to +25°C higher than the set temp.

Small amounts of pharmaceuticals requiring transport at a specific temperature range / Temperature range : chilled (+2°C to +8°C), (under -20°C *)

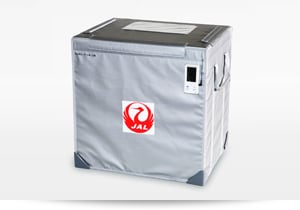

A high-performance refrigerated box that maintains constant temperatures

A high-performance refrigerated box that maintains constant temperatures
A refrigerated box using special coolant. Can transport shipments at constant temperatures for over 150 hours. Can transport small amounts of products such as investigational new drug, etc.
There is a separate charge for using the box.

Leasing equipmentJAL equipment

Temperature range
: +5°C / under -20°C *
Loading space
: 41 × 36 × 31cm
Hours of constant temperatures
: Over 150 hours at cool temperature (depends on ambient temperature) / over 100 hours at freezing temperature (depends on ambient temperature)
Allowable error in case of chilled transport
: ±3°C
Box weight
: 14.2kg

* Coolant for under -20°C has to be freezed by customer using -30°C set freezer.
Please contact to our sales office for more details.

A high-performance refrigerated box that maintains constant temperatures

A high-performance refrigerated box that maintains constant temperatures

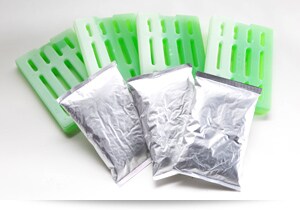

Special coolant

Special coolant

Special coolant are used.

Duration can be adjusted by increasing pieces.
Compared to general coolant, we have chosen special long-lasting one.
By setting the appropriate temperature to suit the shipment, cooling and heating effects are exhibited when sensing differences in temperature. Temperatures inside the box are constant during transport.

Effects and merits of using the high-performance refrigerated box
Provides high quality transportation at constant temperatures
  • Maintains constant temperatures within ±3°C from the chosen temperature
  • We provide highly specialized handling and high quality transport at the airport and onboard aircraft.
  • Present a setup procedure in advance, in case customer has to freeze and set the coolant.
Reduces customers' logistic burden
  • We will manage the coolant, and the special box, which means you no longer have to worry about management costs.
  • We will set up the coolant at your request.
  • By simply placing shipments in the box, it will save you the trouble of packaging.
  • We will bear the costs for returning box to Japan or sending them overseas, reducing your burden of costs for customs clearance or air fare, etc.
Environmentally-friendly transportation
  • The special coolant, and special box are reused, reducing the environmental waste of disposing packaging materials.
  • No need to use dry ice or a cool truck. CO2 emissions can be reduced.
Maintains cold temperatures for over 150 hours against sudden changes in outside temperatures

* When ambient temperatures are constant, low temperatures are maintained for 150 hours.

* When ambient temperatures are constant, low temperatures are maintained for 200 hours.

Temperature sensitive pharmaceuticals requiring minimum exposure to sudden temperature changes / Temperature range : normal room temperatures

Thermal Blanket

A thermal cover specifically for air transport using a special thermal insulating material. Prevents freezing and high temperatures, and provides simple and reasonable transportation at constant temperatures.
* There is a separate charge for use of the blanket.

Volume

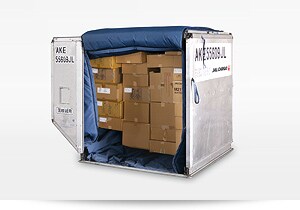

Thermal Blanket LD3 Container Type

Thermal Blanket LD3 Container Type

Leasing equipmentJAL equipment

Temperature range
: minimum exposure to sudden temperature changes
Loading space
: 138 × 130 × 146cm
Transport temperature range
: room temperature

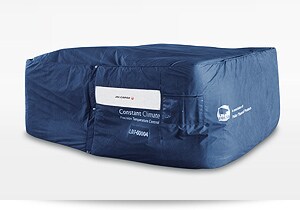

Thermal Blanket LD7 Pallet Type

Thermal Blanket LD7 Pallet Type

Leasing equipmentJAL equipment

Temperature range
: minimum exposure to sudden temperature changes
Loading space
: 310 × 235 × 151cm
Transport temperature range
: room temperature

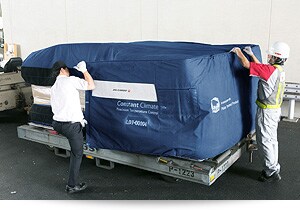

The thermal insulating material Used for extensive purposes.

A thermal cover using thermal insulation material Use for extensive purposes, such as military tents and aircraft components, as well as for air transportation. Prevents freezing and high temperatures, and provides simple and reasonable transportation at constant temperatures.

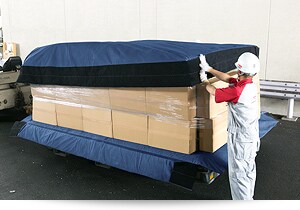

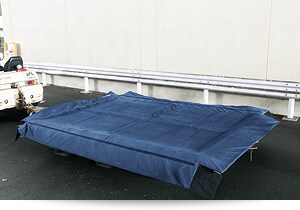

The thermal insulating material was developed from NASA's space program.

The thermal insulating material was developed from NASA's space program.

The thermal insulating material was developed from NASA's space program.

Effects and merits of using a thermal blanket
Prevents a sudden rise and fall in temperatures
  • Especially capable of preventing direct sunlight and cold, and maintaining temperatures within a special range, between the airport warehouse to the aircraft for loading.
  • Very effective for transportation at constant temperature, and when freezing or high temperatures must be prevented.
Reduces the risk of cargo damage
  • The blanket is highly waterproof, and reduces the risk of wet damage.
  • The blanket is protective, and reduces the risk of damage.
Reduces the burden on customers created by logistics
  • The blanket is placed over shipments, reducing your burden of time-consuming packaging work.
  • We will manage the blankets, reducing your burden of management costs.
  • We will bear the costs for returning blankets to Japan or sending them overseas, reducing your burden of costs for customs clearance or air fare, etc.
Environmentally-friendly transportation
  • Blankets are reused, reducing environmental waste of disposing packaging materials.
Exhibits high-performance in maintaining temperature in case of sudden changes in outside temperatures.

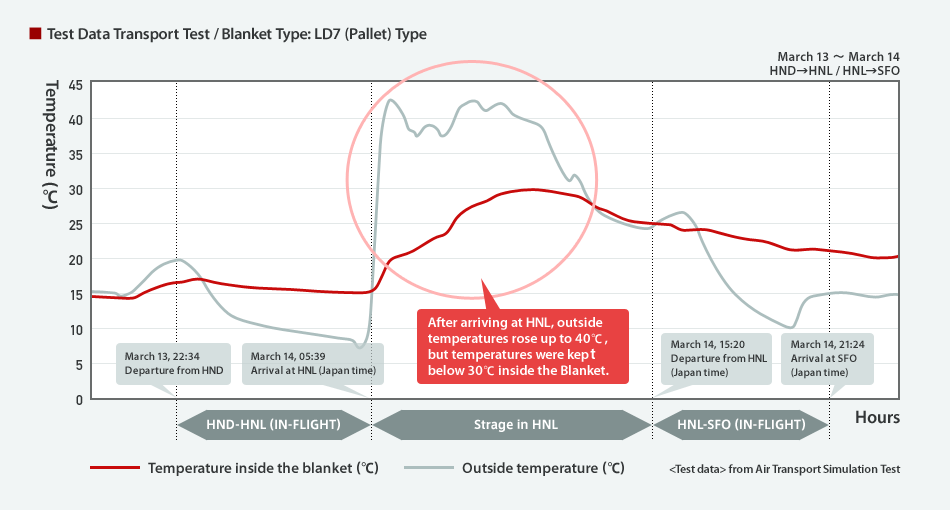

Test Data Transport Test/Blanket Type: LD7 (Pallet) Type

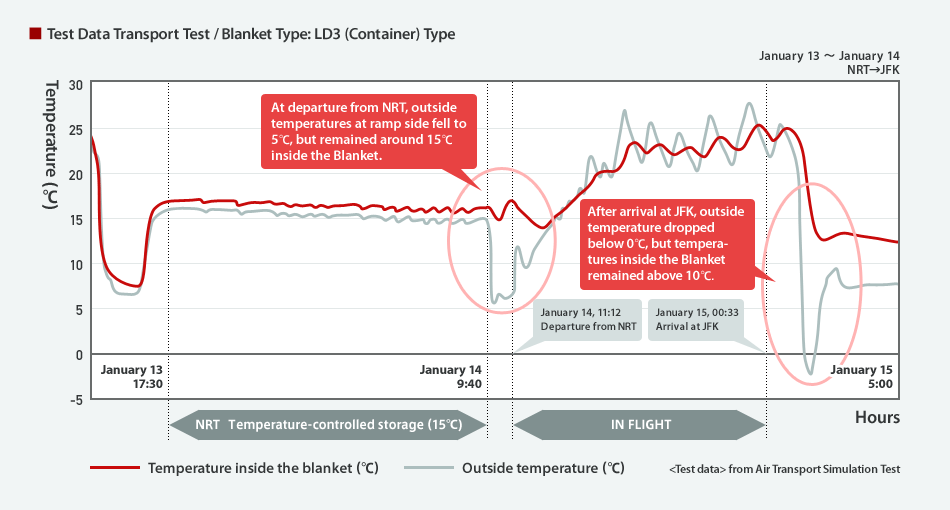

Test Data Transport Test/Blanket Type: LD3 (Container) Type

Recommended for farm products and foodstuffs sensitive to sudden temperature changes caused by the sun's heat, moisture, and dryness, and requiring ventilation.

Special Cover

A thermal cover for air transportation using nonwoven fabric made of 100% High Density Polyethylene (HDPE) Reduces sudden temperature changes caused by the sun's heat
*There is a separate charge for use of the special cover.

Leasing equipmentJAL equipment

Loading space
: 292 × 200 × 162cm

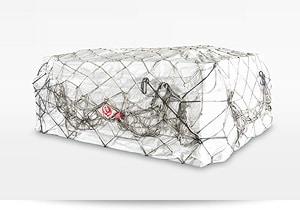

Container wrapped in a special cover

Container wrapped in a special cover

Effect and merits of using the special cover
  • Very strong but light, and capable of reducing risks when torn or pierced
  • Reduces sudden temperature changes caused by the sun's heat while temporary storage and transportation in ramp area.
  • Solves problems with moisture on shipments when covered with a normal cover
  • Prevents shipments from drying
  • It has water proof and effective for prevention of wet barrier

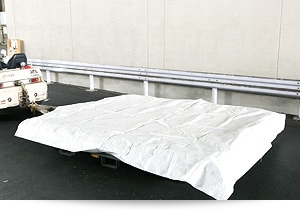

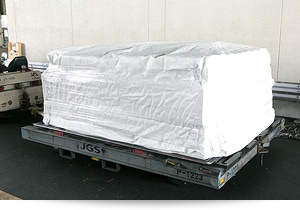

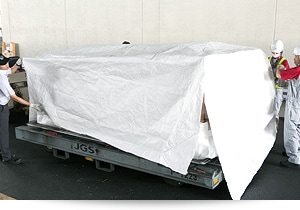

Wrapping a container with a special cover

Wrapping a container with a special cover

Wrapping a container with a special cover

Displays effects in reducing impact caused by sudden tempurature changes

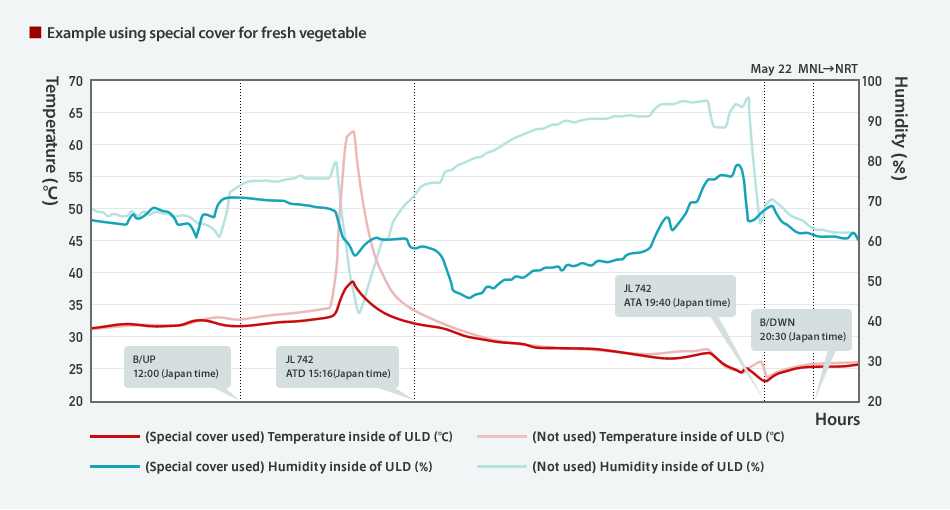

Example using special cover for fresh vegetable

Fare, Service available airports

Fare

Please write JAL carrier fares (or IATA fares).

Service available airports

JAPAN TOKYO (NARITA, HANEDA), OSAKA (KANSAI), NAGOYA (CHUBU), FUKUOKA, SAPPORO, OKINAWA,
and Other Online Airport
AMERICA・CANADA NEW YORK, BOSTON, CHICAGO, DALLAS, SAN FRANCISCO, LOS ANGELES, SAN DIEGO, HONOLULU, VANCOUVER
EUROPE LONDON, PARIS, FRANKFURT, DUBLIN, BRUSSELS, AMSTERDAM, MOSCOW
ASIA・OCEANIA SINGAPORE, KUALA LUMPUR, BANGKOK, JAKARTA, HO CHI MINH CITY, HANOI, MANILA, DELHI, SYDNEY, GUAM
CHINA SHANGHAI (PUDONG, HONGQIAO), HONGKONG, BEIJING, DALIAN, TIANJIN, GUANZHOU
KOREA SEOUL (INCHOEN, GIMPO), BUSAN
TAIWAN TAIPEI (TAOYUAN, SONGSHAN) , KAOSHIUNG

Transport Achievements

AstellasCHUGAI PHARMACEUTICALKYOWA KIRINPfizer

In addition to the above, many international and domestic pharmaceutical manufacturers and pharmaceuticlal@related companies have used the service.

Flow to Request J SOLUTIONS PHARMA

Prepare Air Waybill (AWB)

Please use JAL (131-) AWB.
Write product code (J SOLUTIONS PHARMA) in Handling Information.

Advance Arrangements

Various advance arrangements are necessary to use this service. Click Bookings and inquiries, and consult with us.

For forwarders; bookings and inquiries

For customers and shippers using air transportation for the first time. Inquiries

JALCARGO Tracing Mail Service (JTMS)(for J PRODUCTS only )

JALCARGO JTMS (JALCARGO Tracing Mail Service ) provides information of each Master AWB by e-mail in real time.

Service Comparison

Service Comparison

www.jal.co.jp

Copyright © Japan Airlines. All rights reserved.
