-Lengh:70.7m |
-Maximumtake-off weight:377.8t |
| -Width:59.6m |
-Range:6,500km |
|
|
 |
|
|
 |
|

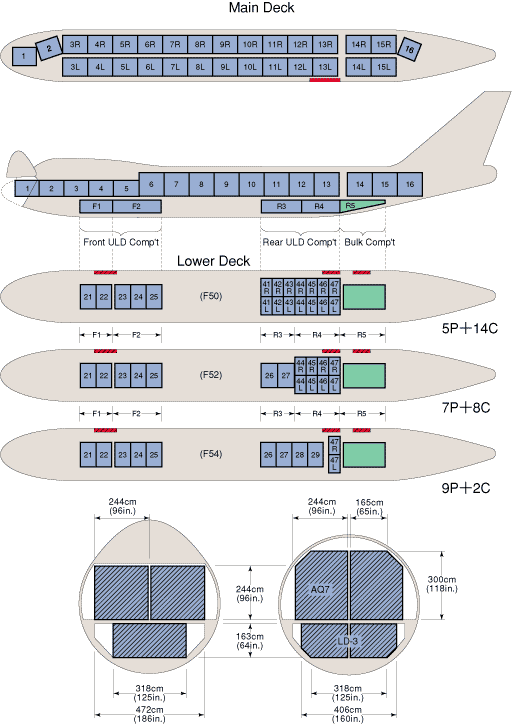

| Cargo Door Dimension |
|
Main Deck Weight Limitation |
 |
 |
| * |
JA-8161/69/93:Side Door Only
JA-8132:Nose Door Only
OTHERS:Both Nose & Side Door |
* |
Restrained by aircraft restraint equipment only. |
|
|

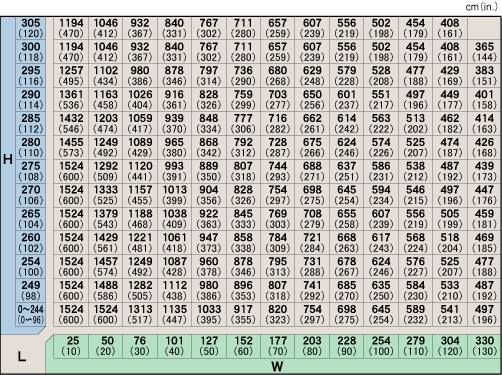

| Package Size Table (Main Deck Nose Door) |
 |
|
| Package Size Table (Main Deck Side Door) |
 |
|

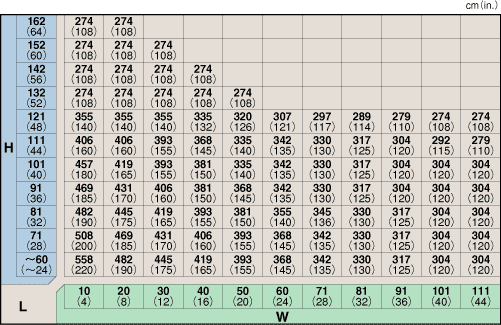

| Package Size Table (Bulk) |
 |
|
| Bulk Comp't Dimension |
 |
|
| Temperature of Cargo Comp't |
|
 |
| *Temperature is not guaranteed. |
|
